VTL – IT 85

Product Description

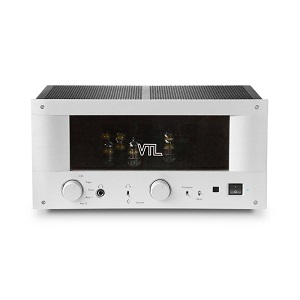

VTL – IT 85 integrated amplifier

The VTL IT-85 Integrated Amplifier is designed for those who seek the simplicity of a single chassis system,

but with the performance of separates. Designed with a fully active preamplifier stage, the IT-85 delivers a hearty 60 watts per channel

with the sonic characteristic that is similar to our well regarded ST-85 Stereo amplifier and the TL2.5 preamplifier combination – fast,

musical 3-D sound, and solid bass support that VTL is known for. The IT-85 is a full linestage preamp and power amplifier in one chassis,

and the linestage section has sufficient gain and a buffered output to be able to drive a subwoofer through the preamp out.

The headphone section of the IT-85 is driven off the tube output stage and output transformer of the power amplifier section thus making

it an ideal high performance pure tube headphone amplifier for headphone aficionados. The IT-85 is designed to accommodate future

upgrade – when you are ready to add a subwoofer, separate pre- or power amplifier, surround processor or headphones to your system,

the IT-85’s many different output stage configurations can be easily and painlessly re-configured, often with just the flip of a switch.

Hand built in our factory in California with the proven VTL quality, the IT-85 will give you lasting value and

listening pleasure for years to come.



Features:

  • High power, capable of driving a wide range of loudspeakers
  • Remote controlled volume and mute (custom remote wand), automatic mute on power up and down
  • Pure tube active line stage, with buffered pre-out and regulated B+
  • One pair of processor loop / direct amplifier inputs
  • One pair of tape outputs
  • Amplifier-driven headphone output, front panel selector switch (pre out mutes on headphone insertion)
  • No-load automatic shutdown in headphone circuit
  • Built-in upgrade path for precisely gain-matched horizontal biamping with VTL ST-85
  • Extruded machined aluminum front panel in silver (standard) or black, and protective cage
  • High quality VTL ST-85 power supply components and output and power transformers
  • Easily accessible individual output tube bias measurement and adjustment points on top deck
  • Angled-back chassis for easy access of inputs and outputs, sturdy quality structural fit and finish
  • Detachable IEC power cord, high quality gold-plated VTL custom binding posts and RCA jacks
  • All hand-built in the VTL California factory



Specifications:

Vacuum Tube Complement 4 x EL34, 4 x 12AT7, 2 x 12AU7
Output power 60 Watts
20Hz – 20KHz <3% THD Into 5 Ω
Small signal frequency response (<0.2% THD @ 1W), 0-60 kHz
Class of operation Class AB1
Inputs 5 pairs of single-ended RCA, Proc/Amp Input
Outputs 1 pair 5-way binding posts, Pre Out, Tape Out, Headphone Out
Input sensitivity Line in: 180 mV, Amp in: 575 mV
Input impedance Line in: 20 kΩ, Amp in: 135 kΩ
Output impedance Amp out: 1.55 Ω, Headphone out: 16 Ω, Preamp out: 400 Ω
Load setting Speakers: 5 Ω, Headphones: 50-500 Ω
Power consuption Ide = 200 W, Full Power=600 W
Dimensions W x D x H 15.75 x 11 x 7 inches, 40 x 28 x 17.75 cm
Weight 29.5 Kg  fully packed
