Tenor – Line 1/Power 1

Product Description

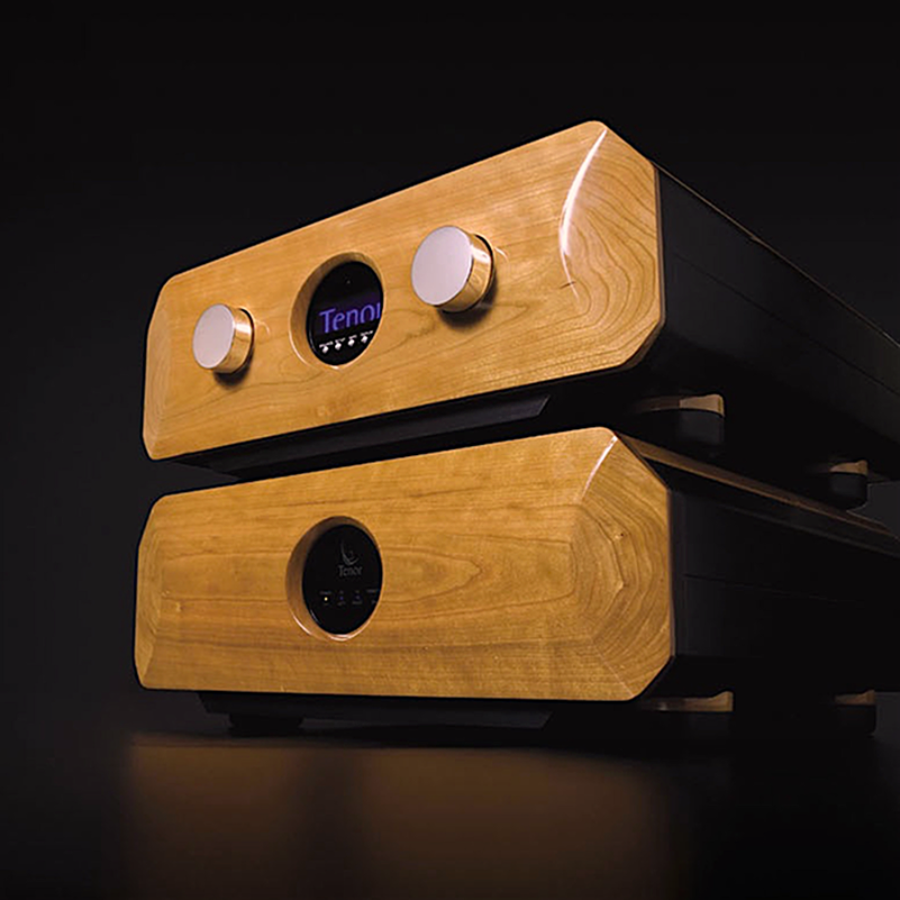

Tenor – Line 1/Power 1 preamplifier

The Line 1/Power 1 dual chassis line stage is the most natural transparent preamplifer in existence!

Built to exacting standards, the Line 1/Power 1 mates perfectly with either the  Tenor 175S or 350M amplifiers

to provide a synergistic experience beyond any other known combination of high end audio equipment.

Separating the power generation from the audio signals with separate chassis’ provides an ultra low noise floor

and extreme dynamics like nothing heard before.

The Line 1/Power 1 is the standard by which all preamplifiers will be judged!

Specifications:

Preamplifier Type:  Line Stage

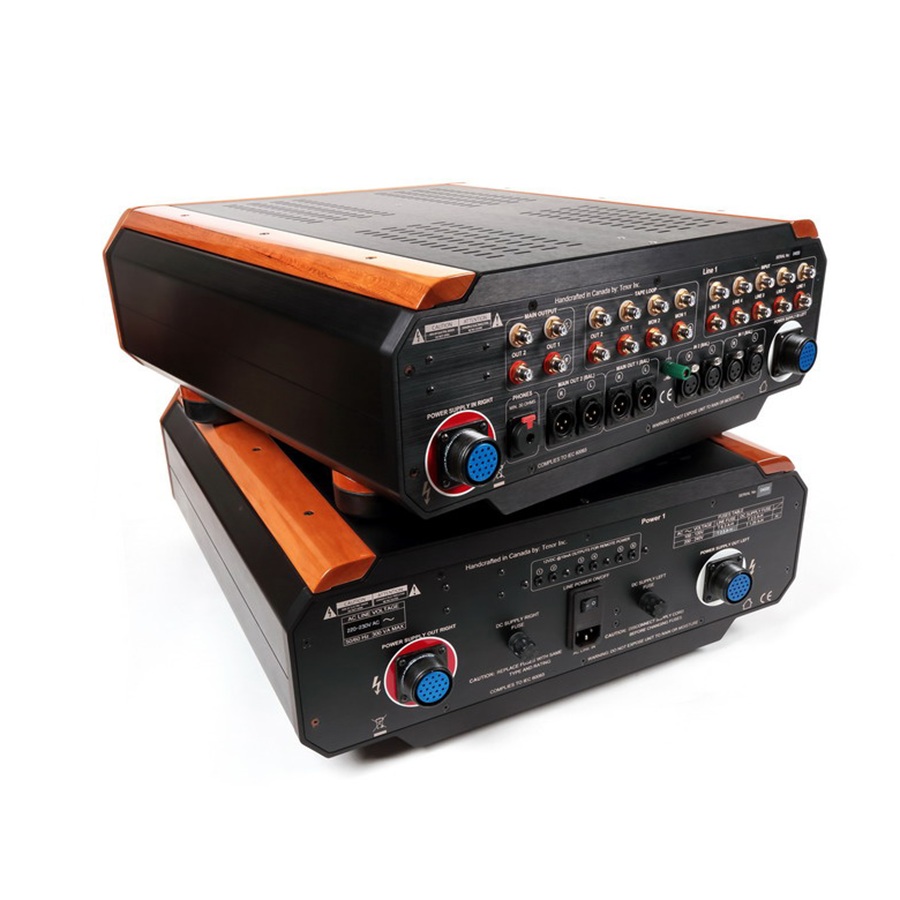

Chassis:  Double – Signal / Power Supply

Dual Mono:  Yes

Harmonic Structural Integrity:  Yes

Volume Steps:  170 (Software Version 3.01)

Voltage Gain:  14 db or 20 db (selectable)

Rated Input:  12 V rms Single Ended or Balanced

Rated Output:  30 V rms Single Ended or Balanced

S/N Ratio Reference @ Normal Listening:  <- 120 dBA

S/N Ratio Reference @ 2 V rms Output:  <- 108 dBA

S/N Ratio Reference @ Maximum Output:  <- 94 dBA

Channel Separation:  <- 90 dBA

Frequency Response 2-100,000 Hz:  + 0 dbA – 0.5 dBA

Frequency Response 2-500,000 Hz:  + 0 dbA – 3 dBA

THD + Noise:  < 0.06 %

IMD:   0.06 %

Weight Line 1:  36 lbs /16 kg

Shipping Weight Line 1:  86 lbs / 39 kg

Dimensions Line 1:  19.5 in W x 22 in D (including connectors) x 9.5 in H (including ventilation)

495 mm W x 559 mm D x 241 mm H

Weight Power 1:  66 lbs / 30 kg

Dimensions Power 1:  19.5 in  W x 21 in D (including connectors) x 9.5 in H (including ventilation)

495 mm W x 533 mm D x 241 mm H

Shipping Weight Power 1:  116 lbs / 53 kg
