Boulder – 3060

$ 145,600.00

Product Description

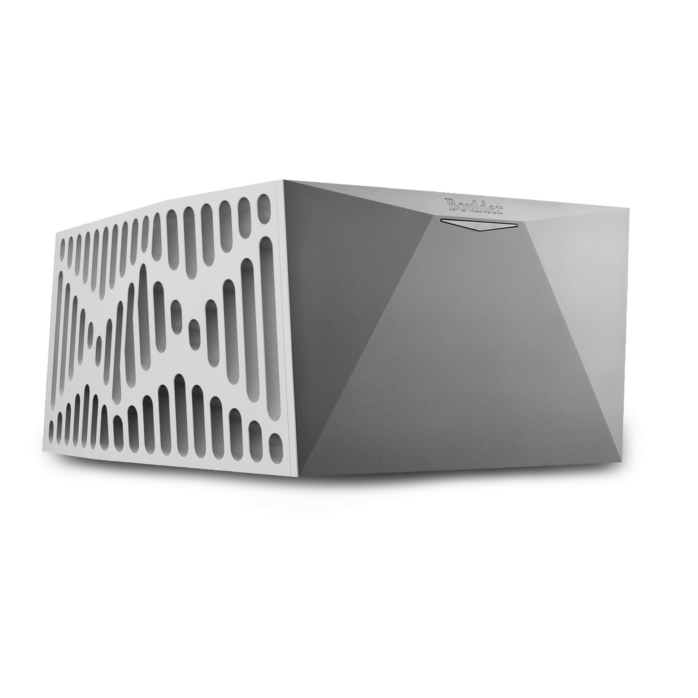

Boulder – 3060 stereo power amplifier

There are projects that contradict conventions and redefine striving for perfection.

These attempts push the boundaries of what is thought to be possible.

They embody the very concept of what it takes to be the best.

Features:

Production of the 3060 is extremely limited and every unit is built to order.

All assemblies are completely designed, manufactured and hand-assembled at our facility in Louisville, Colorado.

900W per channel power output into any loudspeaker load.

Each amplifier is shipped with a polished black granite base that is cut to match the footprint and casework angles of the amplifier.

Contains four (two per channel) of Boulder’s highest performing gain stage, the 99H.

Bias operation is Class-A to full rated output power and managed with an analog circuit that minimizes heat and power consumption.

Five power transformers, each housed in a machined case and potted to eliminate any noise, vibration or hum.

60 bipolar output transistors per channel for unmatched control of virtually any loudspeaker.

48 filter capacitors are part of an ultra-responsive, low-impedance power supply.

3060 – Specifications:

 PEAK POWER, 8 OHMS900W

PEAK POWER, 4 OHMS1650W

PEAK POWER, 2 OHMS3000W

THD, 8 OHMS, 900W – 20-2 kHz: 0.0006%, 20 kHz: 0.0025%

THD, 4 OHMS, 900W – 20-2 kHz: 0.0008%, 20 kHz: 0.0030%

THD, 2 OHMS, 900W – 20-2 kHz: 0.0012%, 20 kHz: 0.0045%

EQUIVALENT INPUT NOISE (EIN), 20KHZ BW – 1.5 μV

MAGNITUDE RESPONSE, 20 TO 20KHZ – +0.00, -0.04 dB

MAGNITUDE RESPONSE, -3DB AT – 0.015 Hz, 200 kHz

VOLTAGE GAIN26dB

INPUT IMPEDANCEBalanced: 200KΩ,

Unbalanced: 100KΩ

COMMON MODE REJECTION (BALANCED ONLY)

60 Hz: 90dB,

10 kHz: 70dB

INPUTS3-pin balanced (XLR)

OUTPUT CONNECTORS2 sets of 6 mm / .250 inch wingscrews

POWER REQUIREMENTS220-240 VAC

50-60 Hz, 300W nominal, 6000W at maximum output

WEIGHT Amplifier: 355 lbs. (161 kg),

Granite Base: 86 lbs. (39 kg),

Shipping: 563 lbs. (256 kg)
