Boulder – 2110

Product Description

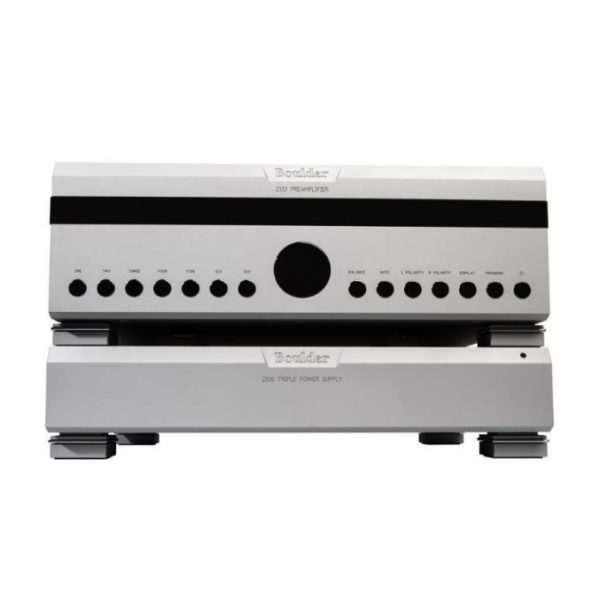

Boulder – 2110 preamplifier

The 2110 is Boulder’s highest performing, continuously-produced preamplifier.

Inside there is a fully-balanced volume attenuator and electronics boasting precision surface-mount technology.

Outside, there is a modern and luxurious look highlighted by a wrap-around mirror-glass display window

and hand-polished controls. Six inputs, three outputs and extensive programming features make this Boulder

the heart of any world-class audio system.



Features:

Balanced version of Boulder’s analog discrete step volume control is programmable for 0.1, 0.5, and 1.0 dB steps.

Four separate chassis: left audio, right audio, user interface, and power supply to isolate the analog channels from supply,

control, and display noise.

Large, easy-to-read, dot matrix LED display.

Six pairs of programmable, differentially-balanced inputs.

Three pairs of balanced outputs for bi- and tri-amplified systems or powered subwoofers.

Cut mirror glass display window to match the hand-polished stainless steel buttons and volume control.

Separate power supply chassis houses three independent power supplies: analog left, analog right and control functions.

Every input can be custom named and configured for user preferences.

Auxiliary outputs are programmable to feed secondary systems or recording devices.

Uses 12 high-current output 993S gain stages, a discrete and modern version of the 990 gain stage used in broadcast

and recording studios world-wide.

Each input can be configured for Theater Mode when used in home cinema installations.

Boulder Link and 12V trigger for use with external control systems.



2110 – Specification:

BALANCED INPUTS6 pairs of 3-pin XLR

MAIN BALANCED OUTPUTS3 pairs of 3-pin XLR

AUX BALANCED OUTPUTS1 pair of 3-pin XLR

MAXIMUM INPUT LEVEL7 Vrms

MAXIMUM OUTPUT LEVEL28 Vrms

THD+N, 2V OUTPUTfrom 20 Hz to 5kHz: 0.0008% (-102 dB), at 20 kHz: 0.001% (-100 dB)

MAXIMUM VOLTAGE GAIN20 dB

VOLUME RANGE100 dB

VOLUME STEPS0.1, 0.5, 1.0 dB ± 0.01 dB

AUX PATH GAIN1 dB

FREQUENCY RESPONSE, 20 HZ TO 5 KHZ+0.00, -0.03 dB

FREQUENCY RESPONSE, – 3 DB – 0.02 Hz & 300 kHz

CROSSTALK, L TO R OR R TO L134 dB or better, 20 Hz to 20 kHz

CROSSTALK, ADJACENT INPUTS134 dB or better, 20 Hz to 20 kHz

CROSSTALK, MAIN TO AUX 130 dB or better, 20 Hz to 20 kHz

INPUT IMPEDANCE333kΩ Balanced

OUTPUT IMPEDANCE100Ω Balanced

POWER REQUIREMENTS90-120V / 200-240V, 50 – 60 Hz

POWER CONSUMPTION – 240W Max, 85W On (Idle), 500mW Standby

PREAMPLIFIER WEIGHT63 lbs. (28.6 kg),  Shipping: 77 lbs. (34.9 kg)

POWER SUPPLY WEIGHT48 lbs. (21.8 kg),  Shipping: 58.5 lbs. (26.5 kg)
