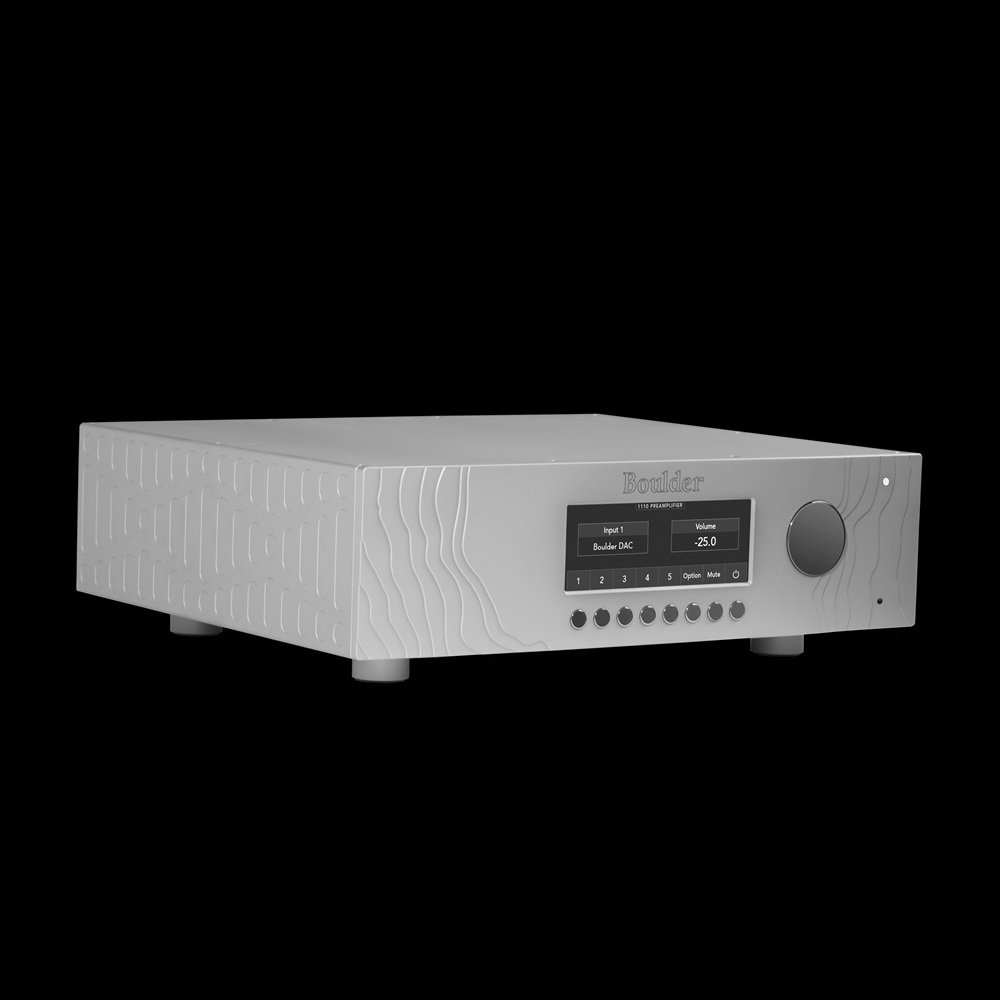

Boulder – 1110 preamplifier
What is it that makes the 1110 Stereo preamplifier so special?
It is something rare, an overachiever, a unique combination of reference-level performance and compact,
convenient design. It is at once familiar in size and shape and yet completely new in aesthetic design detail.
It is the perfect mix of traditional function and cutting-edge technology.
Perhaps what makes it so special is that it takes such amazing sight,
sound, use, and feel and packs them all into a single chassis.
It is, after all, a Boulder, and every Boulder is special.
Five pairs of programmable, differentially-balanced inputs.
Balanced version of Boulder’s own analog volume control, descended from the 3010 Preamplifier,
for superior clarity and noise elimination.
Each input can be configured for Theater Mode when integrated into home cinema systems.
Available IP control connection for simple use connection to home automation systems.

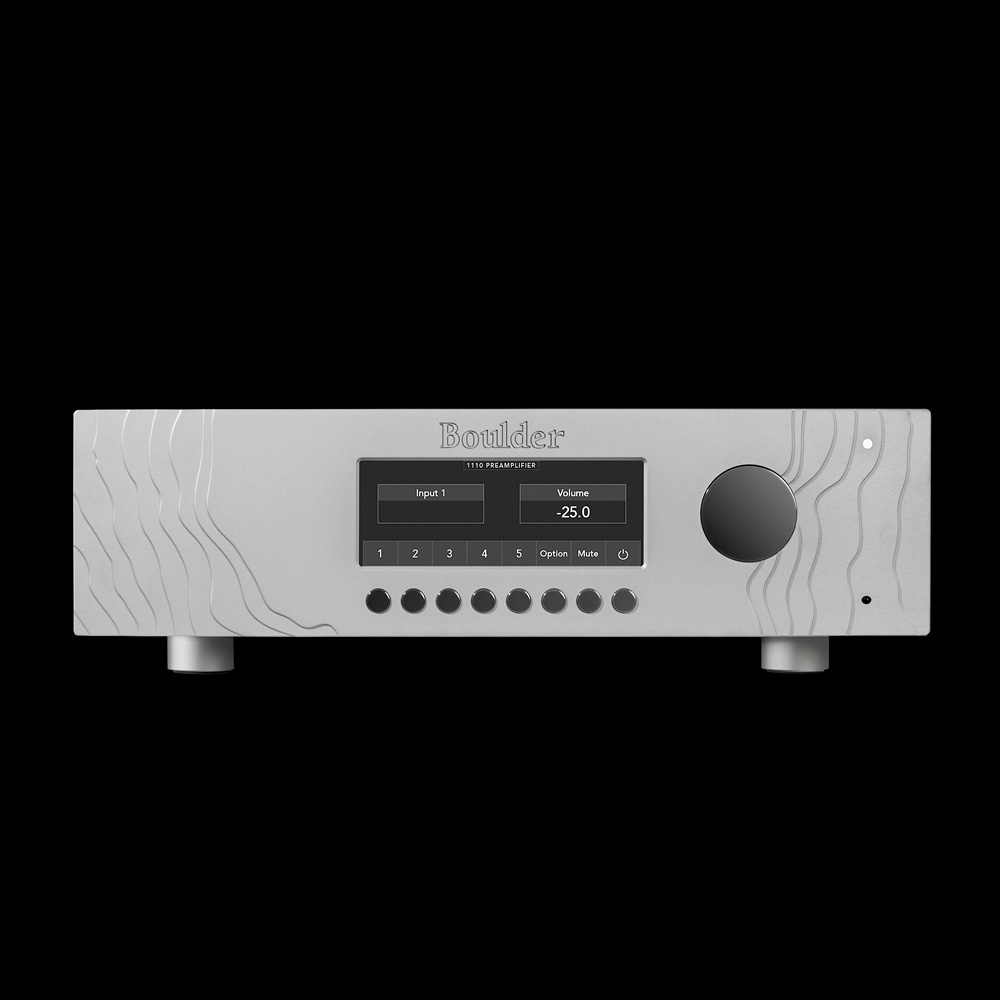

Unique front panel design displays the topographical map of Flagstaff Mountain, located near Boulder, Colorado.
Full surface-mount circuit board architecture manufactured on Boulder’s own precision pick-and-place machine.
Comprehensive setup and options programming for all inputs and preamplifier functions.
Boulder’s own 983 gain stage means excellent buffering and current drive for long cable runs.

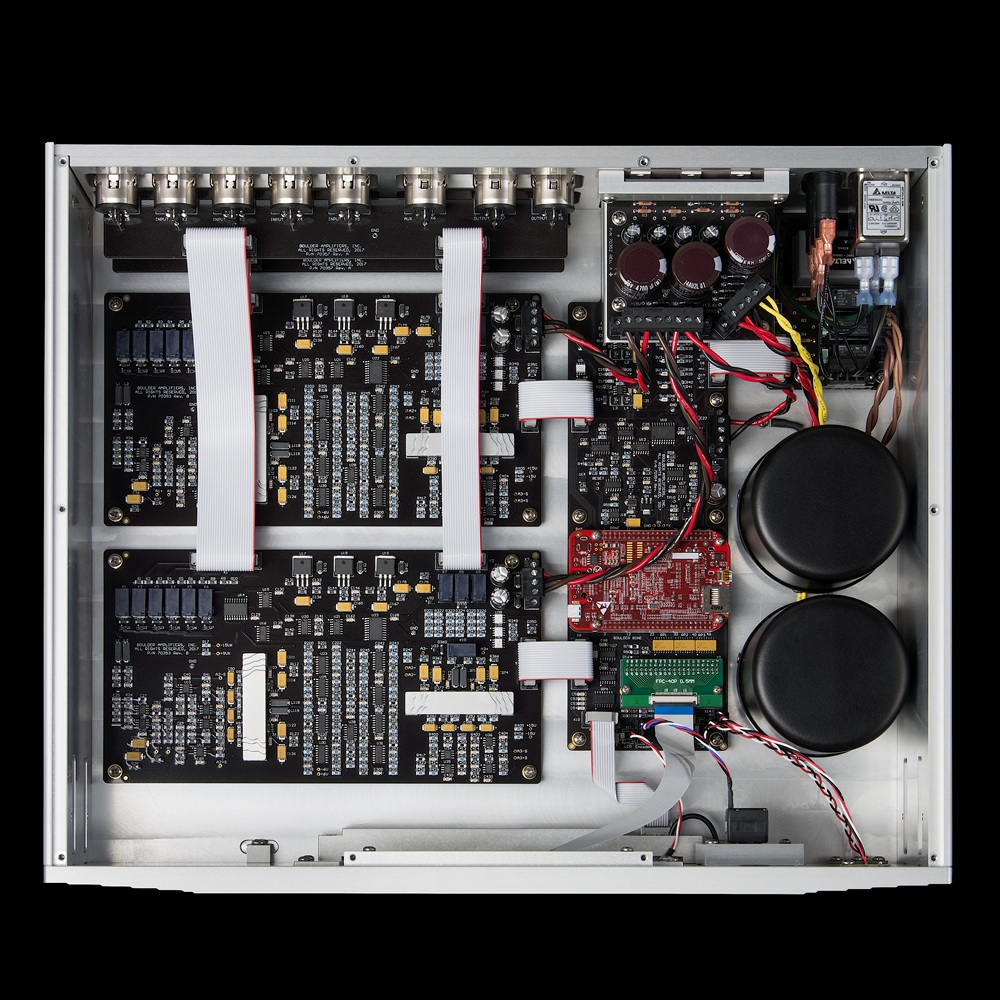

Dual-mono audio boards isolate left and right channels for perfect stereo separation in a single-chassis design.
Embedded ARM processor controls all preamplifier functions and setup options.
Automated online software management for worry-free updating.
Large, easy-to-read, LCD display.
1110 – Specification:

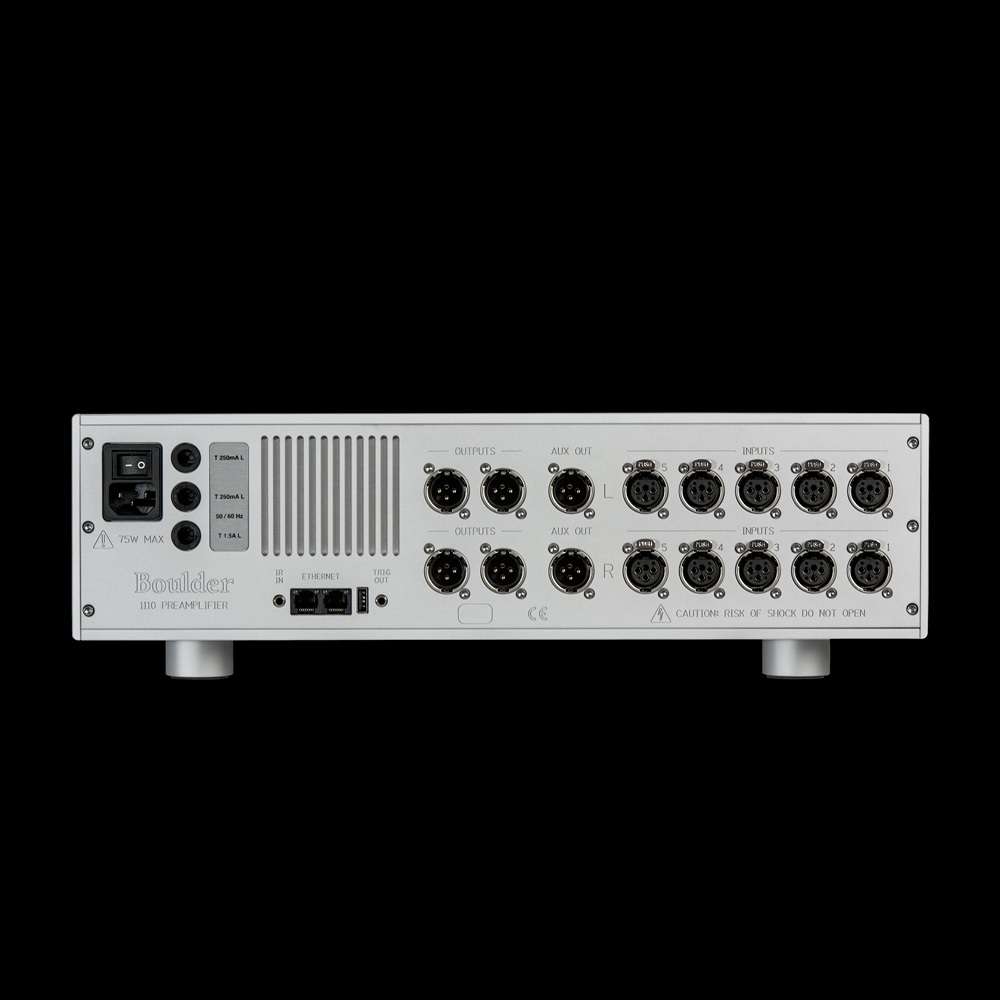

INPUT CONNECTIONs – 5 pairs balanced line level
OUTPUT CONNECTIONS – 2 pairs balanced main, 1 pair balanced auxiliary
VOLUME – 100 dB range in 0.5 dB steps (200 steps) or 1.0 dB steps (100 steps)
MAXIMUM INPUT LEVEL – 6.0 Vrms
MAXIMUM OUTPUT LEVEL – 14.0 Vrms
THD+N, 2V OUTPUT, 20 HZ – 20 KHZ – 0.0015% (-96.5 dB)
OUTPUT LOADED WITH 150 OHMS – Less than 1 dB distortion change, 20 – 10 kHz
MAXIMUM VOLTAGE GAIN – 20 dB
AUXILIARY PATH GAIN, BALANCED OUTPUT – 8.5 dB balanced / 2.5 dB unbalanced
FREQUENCY RESPONSE, 20 HZ – 20 KHZ – +0.00, -0.03 dB
FREQUENCY RESPONSE, -3 DB AT – 0.02 Hz and 250 kHz
CLIP TO NOISE RATIO – 118 dB
CROSSTALK, L TO R OR R TO L – -101 dB or better, 20 Hz to 20 kHz
CROSSTALK, ADJACENT INPUTS – -115 dB or better, 20 Hz to 20 kHz
INPUT IMPEDANCE – 100k ohms, balanced / 50k ohms, unbalanced
OUTPUT IMPEDANCE – 100 ohms, balanced / 50 ohms, unbalanced
CONTROL SYSTEM – IP (Ethernet), IR, Boulder Net
POWER REQUIREMENTS – 100, 120, 220-240 VAC, 50-60 Hz
POWER CONSUMPTION – 75W maximum
WEIGHT – 36 lbs. (16.3 kg),
SHIPPING – 49 lbs. (22.2 kg)
