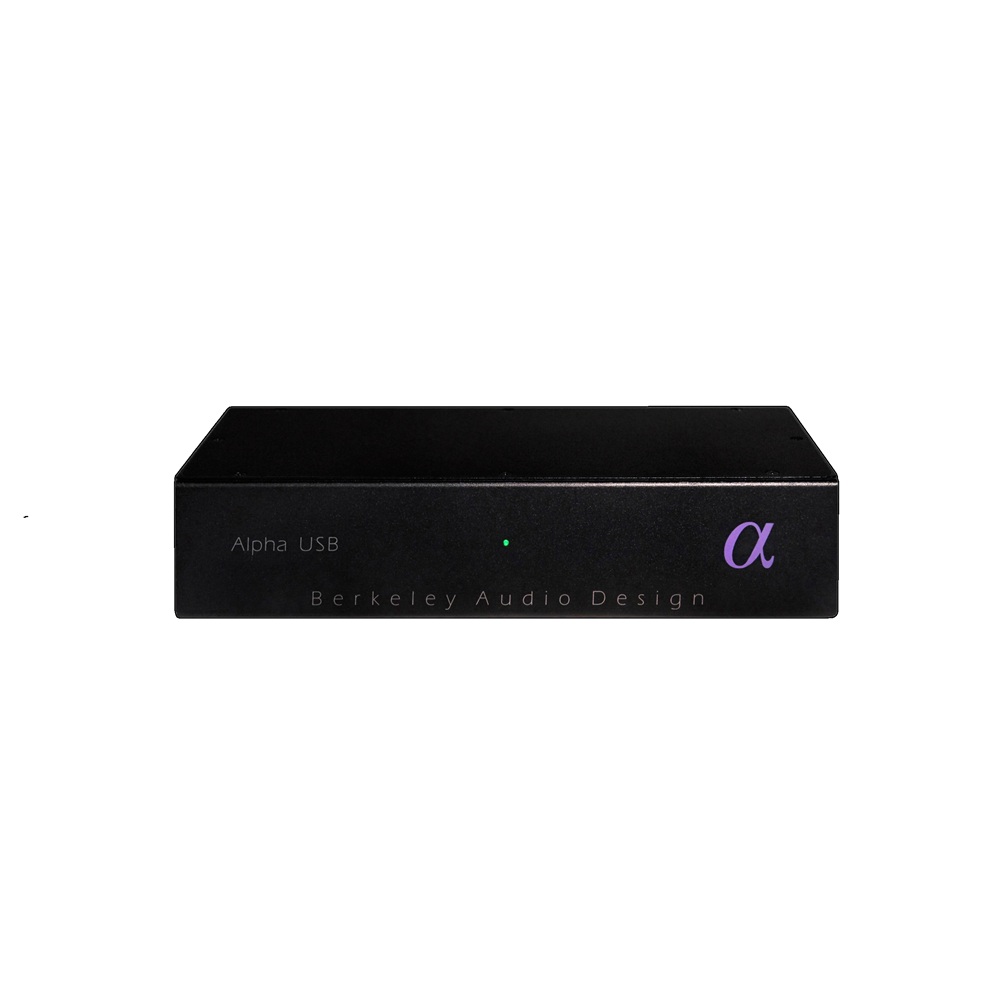

Berkeley Audio Design – Alpha USB
Is an asynchronous High Speed USB to digital audio interface
that extracts the highest possible audio quality from computer audio sources.
The Alpha USB features a High Speed USB 2.0 input data connection and switch selected audio output signal type –
either coaxial SPDIF using a BNC connector or balanced AES using an XLR connector.
Sampling rates up to 192 kHz and word lengths up to 24 bit are supported.
Great care was taken in the design of the Alpha USB to isolate the noisy computer/USB environment from the digital audio output.
The USB receiver and processing are powered by the computer, while the output master clocks and line drivers
are powered by a separate isolated linear power supply.
Two key factors combine to achieve the excellent audio performance of the Alpha USB –
the unprecedented degree of electrical isolation between the USB input connection and the audio output and
the very low noise/low jitter performance of the individually tested audio output master clocks.
The Alpha USB is designed to work with both Apple Macintosh and Windows PC computers.
Apple Macintosh computers using Snow Leopard or later operating systems have a
High Speed USB Audio Driver that interfaces directly with the Alpha USB.
It is not necessary to install a special driver. Microsoft Windows PC’s require the included
Alpha USB Windows driver which works with Windows XP, Vista and 7.
A User’s Guide, Windows driver CD and 6’ power cord are included with the Alpha USB.

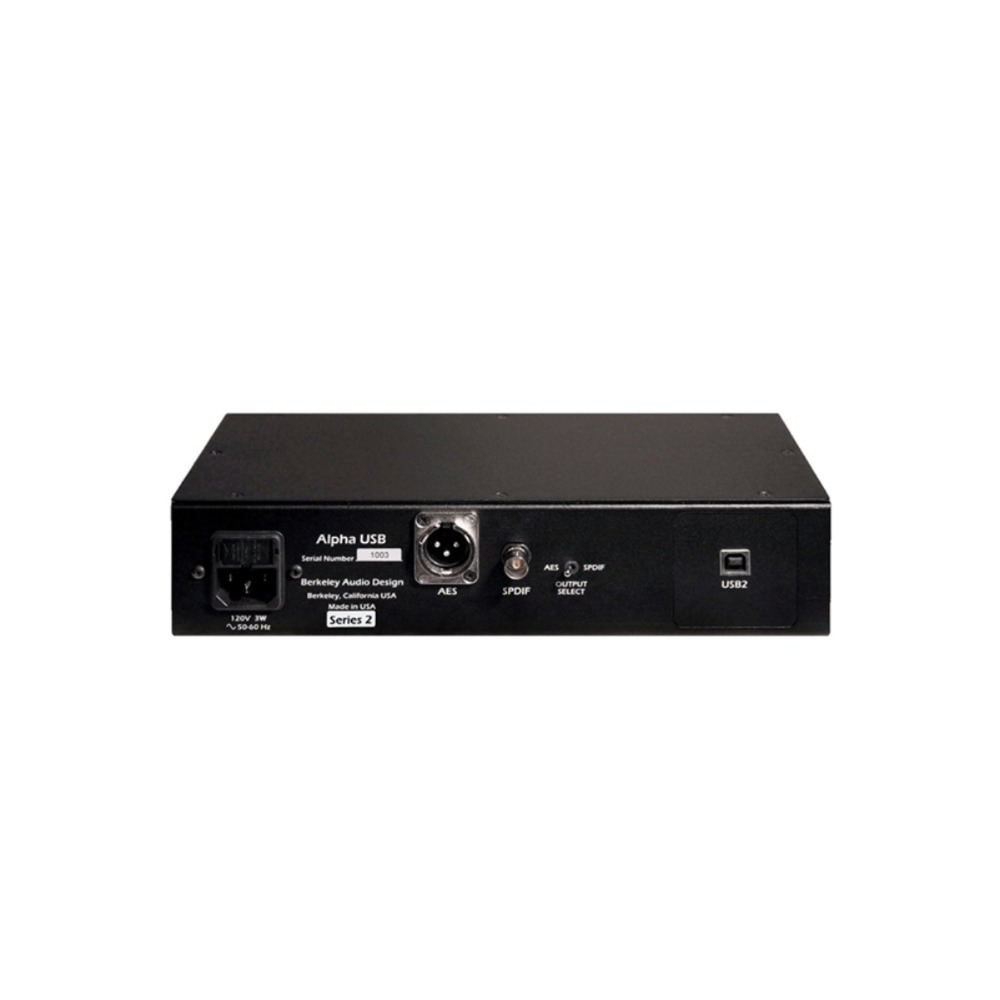

- Input: High Speed USB 2.0 asynchronous connection – type B receptacle
- Outputs: switch selectable, coaxial SPDIF – BNC, 75Ω or balanced AES type – XLR, 110Ω
- Supported sampling rates: 44.1kHz to 192kHz
- Supported word lengths: up to 24-bit
- Supported operating systems: Apple Macintosh and Microsoft Windows
- Enclosure dimensions: 2.3”H X 10.5”W x 5”D, 2.55”H including feet
- Mains power: 100/120/240VAC, 50/60Hz, IEC power input connector
- Power consumption: 3W, designed for continuous operation
